1. Product Description

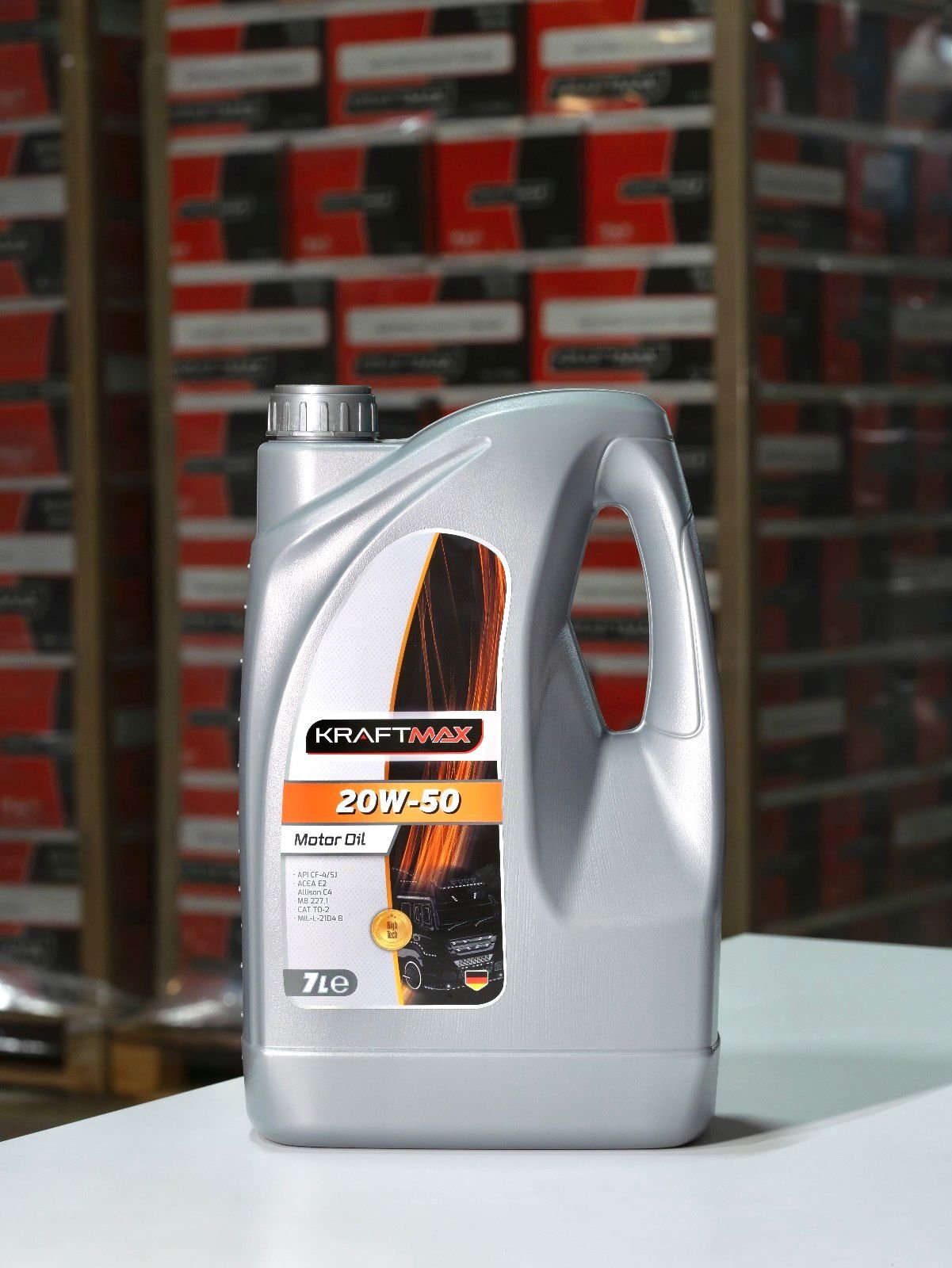

KRAFTMAX MINEREX Series are high-quality mineral engine oils designed for use in gasoline and light-duty diesel engines. They are formulated to offer reliable performance in older vehicles operating under standard to moderate driving conditions, providing solid wear protection, cleanliness, and durability.
2. Key Benefits
• Reliable wear protection for conventional engines
• Maintains oil film stability under operating stress
• Helps prevent sludge and varnish formation
• Suitable for mixed fleet use in moderate environments
• Economical choice for older gasoline and diesel engine applications
3. Performance Standards & Approvals
• API SM / CF
• ACEA A3/B3-98 (Issue 2)
• VW 500.00 / 501.01 / 505.00
• MB 229.1 / 228.1
4. Typical Technical Properties
|
Property |
|
|
|
Grade |
15W-40 |
20W-50 |
|
Kinematic Viscosity @ 100°C, mm2/s, ASTM D445 |
12,5 – 16,3 |
16,3 – 21,9 |
|
Viscosity Index, ASTM D2270, Min. |
110 |
110 |
|
Pour Point, °C, ASTM D97, Max. |
-28 |
-25 |
|
Flash Point, COC, °C, ASTM D92, Min. |
215 |
220 |
|
Density @ 15.6°C, g/ml, ASTM D4052 |
0,875 |
0,880 |
|
Kinematic Viscosity @ 40°C, mm2/s, ASTM D445 |
118.1 |
171,2 |
|
TBN (mg KOH/g), Min. |
5,5 |
5,5 |
|
Sulphated ash , %, Max. |
1,3 |
1,3 |
Disclaimer: The typical properties listed above represent average values and may vary within acceptable manufacturing tolerances. This information does not constitute a specification.
5. Packaging Options
Available in: 1L, 4L, 5L, 20L pail, 55L drum, 200-208L barrel, 1000L IBC
Private label and bulk delivery options available on request.
6. Storage & Handling
- Store between 0°C and 40°C in dry, well-ventilated conditions
- Avoid direct sunlight and ignition sources
- Shelf life: 5 years in original sealed packaging
7. Health & Safety
Refer to the Material Safety Data Sheet (MSDS) for complete guidance on handling, disposal, and safety precautions.
Note: The information provided is based on current knowledge and experience. It does not constitute a legally binding assurance of specific properties.
